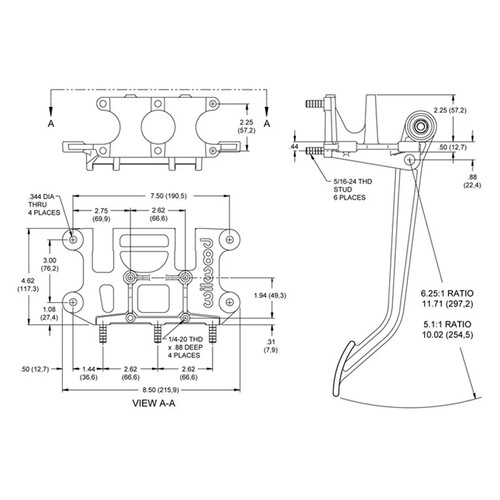

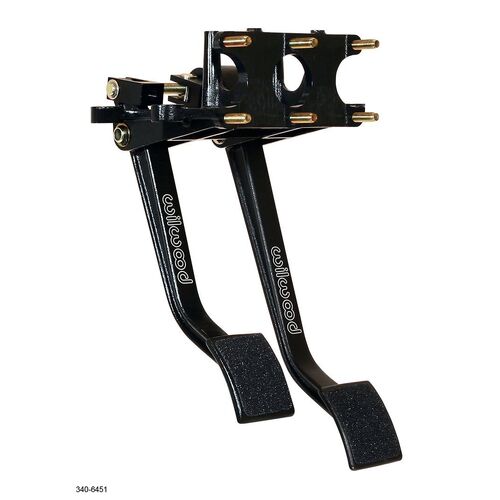

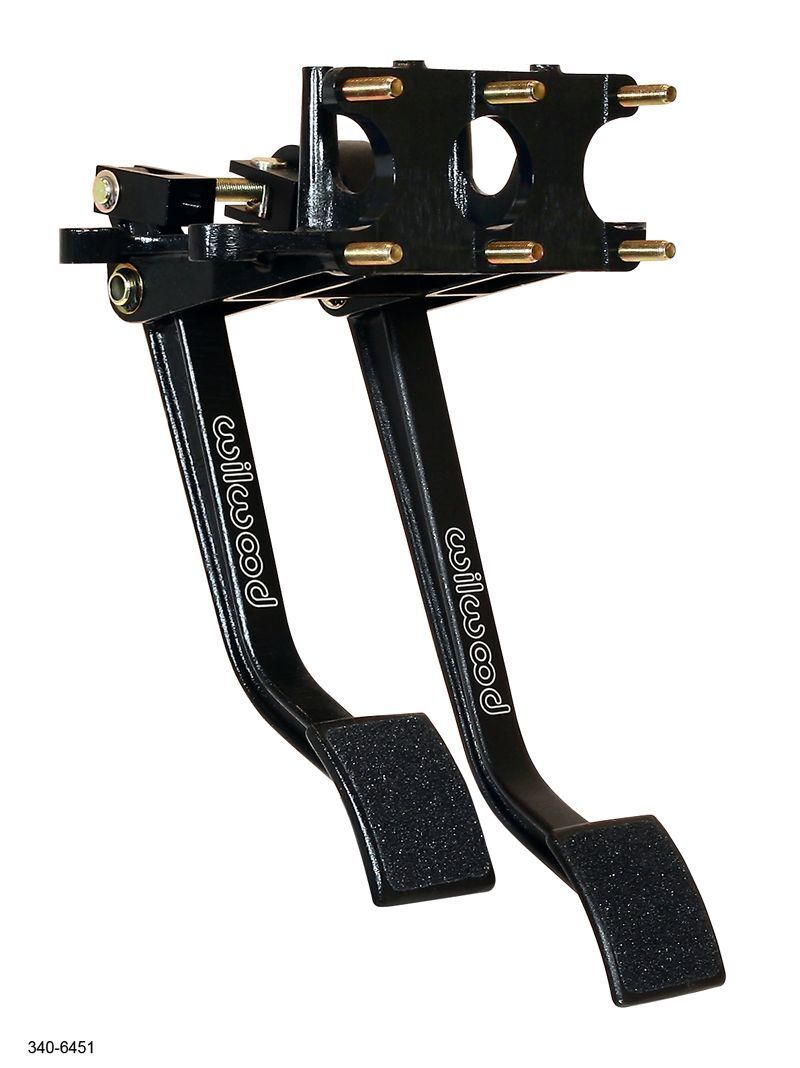

This assembly combines the brake and clutch pedals together in one unit and positions the master cylinders inside the firewall and away from engine heat. It features all aluminum frame and arm construction with steel pivots, mounting studs, and anti-skid pedal pads. Wilwood's clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. With a 6.25 to 1 ratio on brake pedal and a shorter 5.00 to 1 on the clutch pedal. Very useful with dirt modified and others with limited clearance for clutch pedal actuation.
SKU WIL340-6451
Brand Wilwood High Performance Disc Brakes
Shipping Weight 2.0300kg
