• High Grade Aluminium. 3.0mm thickness

  • Robot Welded. The fuel cell has been welded solely by a high level machine robot the quality of which can be seen by the clean corner welds.

  • Safety Foam. The fuel cell incorporates aircraft quality anti-flammable yellow safety foam. Ethanol & Methanol safe.

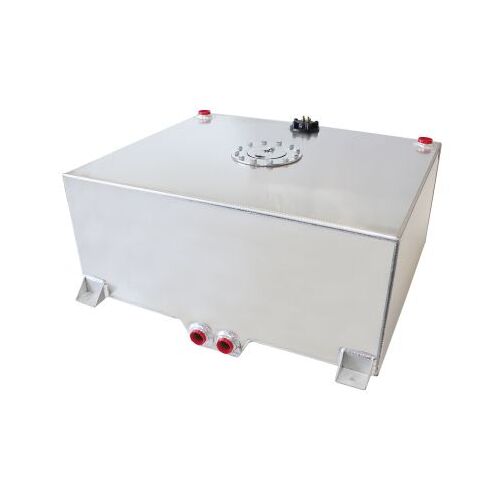

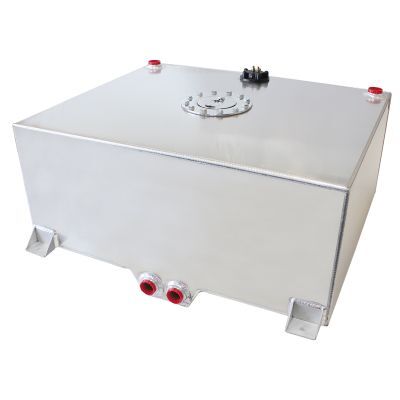

  • Fuel Pick-Up Point. As can be seen in the photo, The fuel OUT fittings are in a cavity at the base of the cell, which helps prevent fuel starvation at low fuel levels even under high G-force levels.

  • Fuel Inlet / Outlet Fittings. The fuel cell incorporates all -12 ORB female threads for use in all applications. 2 X pickups and 2 X returns or 1 X return and 1 X rollover. For a bolt in Roll-Over valve use Part AF614-08.

  • Flush Cap. Designed for ast cap removal with a flip up and twist action CNC billet polished alloy cap with a 1 way air valve in the cap.

  • Fuel Level Sender Unit. The resistance at empty is 0 ohms and the resistance at full is 90 ohms.

  • Mounting Brackets. The cell can be secured with the 4 sturdy mounting brackets. (Rubber mounts recommended for high flex chassis applications)

SKU AF85-2200AS
Brand Aeroflow Performance Products
Shipping Weight 14.6900kg
